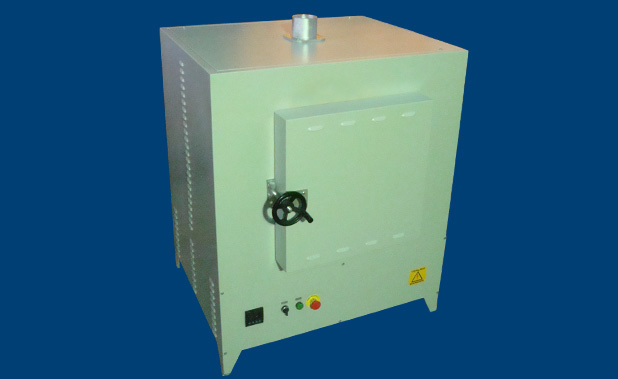

600°C - 1700°C High Temperature Industrial Furnaces

We are manufacturing custom size heat treatment furnace with working temperature up to 1700°C according to customer demands and selling in domestic and international markets especially Middle East and North Africa. If you are planning to buy an heat treatment furnace, please specify your furnace sizes (width, length, depth) and working temperature, then call us. Our furnace experts will help you to decide the right furnace for your special application.

Models above are our standard models, we can design and produce heat treatment furnaces according to customer needs. If you need to buy a custom size heat treatment furnace, please specify your furnace sizes(width-length-depth), working temperature. Send us an email to @

High Temperature Industrial Furnace Manufacturing

We are manufacturing custom size heat treatment furnace with working temperature up to 1700°C according to customer demands.

High Temperature Heat Treatment Applications

High Temperature Processes
Material Test
Small Parts Production
Ceramic Sintering
Metal Sintering
Aging
Stress Relief
Softhening
Surface Hardening

Materilas We Are Using For High Temperature Furnaces

Resistance Wire
Controller
Thermocouple
Door
Insulation Material
Power Controller
Max Temperature
Working Temperature

SiO2, MoSi2
Digital PID 7 steps programmable, PID-Thyristor Current
PtRh%10-Pt., PtRh%13-Pt.
Opening to right or left
Refractory bricks + Ceramic Fiber Blanket
SSR
1700ºC
1700ºC

High Temperature Furnace Sizes and Technical Specifications

Model	Sizes(cm)			Volume (dm³)	Max. Temperature (°C)	Resistance Wire Type	Controller Type	Measure Element	Power (kw)	Supply Voltage (V)
Model	Width	Depth	Height	Volume (dm³)	Max. Temperature (°C)	Resistance Wire Type	Controller Type	Measure Element	Power (kw)	Supply Voltage (V)
HT49	35	35	40	49	1.700	MoSi₂	PID-Thyristor Current Cont	PtRh%13-Pt	15,0	380
HT80	40	40	50	80	1.700	MoSi₂ ₁₈₀₀	PID-Thyristor Current Cont	PtRh%13-Pt	22,0	380
HT150	50	50	60	150	1.700	MoSi₂ ₁₈₀₀	PID-Thyristor Current Cont	PtRh%13-Pt	28,0	380
HT200	50	50	80	200	1.700	MoSi₂ ₁₈₀₀	PID-Thyristor Curret Cont	PtRh%13-Pt	32,5	380
HT240	50	60	80	240	1.700	MoSi₂ ₁₈₀₀	PID-Thyristor Current Cont	PtRh%13-Pt	37,0	380
HT300	50	60	100	300	1.700	MoSi2	PID-Thyristor Current Cont	PtRh%13-Pt	42,0	380
HT540	60	90	100	540	1.700	MoSi₂ ₁₈₀₀	PID-Thyristor Current Cont	PtRh%13-Pt	58,0	380
HT810	90	90	100	810	1.700	MoSi₂ ₁₈₀₀	PID-Thyristor Current Cont	PtRh%13-Pt	75,0	380
